For Aluminum alloy welding wire, everyone has different special concerns about it, and what we do is to maximize the product requirements of each customer, so the quality of our welding wire ER-5356 has been well received by many customers and enjoyed a good reputation in many countries. GUJIN® Aluminum alloy welding wire have characteristic design & practical performance & competitive price, for more information on the Aluminum alloy welding wire, please feel free to contact us.

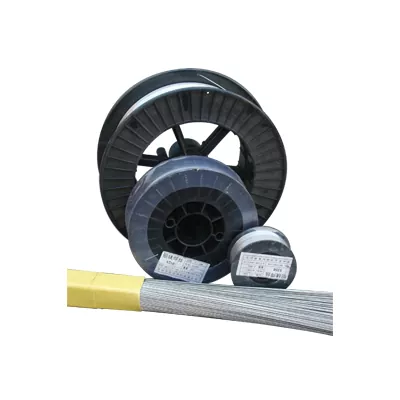

GJ-ER5356 is an aluminum alloy welding wire containing 5% magnesium and a small amount of titanium refined grains, with a melting point of 575-633℃. It has good corrosion resistance and hot cracking resistance, high strength, and good malleability. After anodizing the weld seam, it remains white and can provide a good color matching for welded joints. It is a versatile and versatile welding material.
Product Name |
Standard and steel grade |
Dia (mm)
|
Chemical composition of welding wire |
|||||||
GB |
AWS |
|
C |
Fe |
Si |
Mn |
Mg |
Cr |
Zn |
|
GJ-ER5356 |
S5356 |
ER5356 |
0.8-5.0 |
≤0.10 |
≤0.40 |
≤0.25 |
0.05-0.20 |
4.5-5.5 |
0.05-0.20 |
≤0.10 |
Melting Range |
1060°F-1175°F (571°C-635°C) |
Ultimate Tensile Strength (psi) |
29,000-45,000 psi |
Yield Strength (psi) |
12,000-30,000 psi |
Percent Elongation in 2” |
10-18% |
Density |
0.096 lbs/in³ |
Post Anodize Color |
White |
Diameter |
WFS(ipm) |
Amperage |
Volts |
Consumption (lb/100 ft) |
Argon (cfh) |
.030” |
480-625 |
60-175 |
15-24 |
0.65-1.25 |
25-30 |
.035” |
450-750 |
70-185 |
15-27 |
1.0-4.25 |
30-35 |
3/64” |
330-500 |
125-260 |
20-29 |
1.0-4.25 |
35-45 |
1/16” |
250-450 |
170-300 |
24-30 |
3.8-6.6 |
45-75 |
Base Thickness |
Filler Wire Size |
Tungsten |
Amperage |
Consumption (lb/100 ft) |
Argon (cfh) |
Gas Cup Size |
1/16” |
1/16” |
1/16” |
60-80 |
0.75 |
20 |
3/8” |
3/32” |
3/32” |
3/32” |
85-120 |
1.0 |
20 |
3/8” |
1/8” |
3/32” |
3/32” |
125-160 |
1.5 |
20 |
3/8” |
3/16” |
1/8” |
1/8” |
190-220 |
4.5-6 |
25 |
7/16” |
1/4” |
5/32” |
5/32” |
200-300 |
8-10 |
30 |
1/2” |
The results reported are based upon testing of the product under controlled laboratory conditions in accordance with American Welding Society Standards. Actual use of the product may produce different results due to varying conditions. An example of such conditions would be electrode size, plate chemistry, environment, weldment design, fabrication methods, welding procedure and service requirements. Thus the results are not guarantees for the use in the field. The manufacturer disclaims any warranty of merchantability of fitness for any particular purpose with respect to its products.
